Blast Machines
Our Range
Blast Machines, 11 different series
The right solution for every need.
Whether portable blaster or compact economy cabinet for occasional use up to the large-volume automotive container – Microbeads AG delivers blast technology that performs in practice. Advice, configuration and delivery throughout Switzerland.

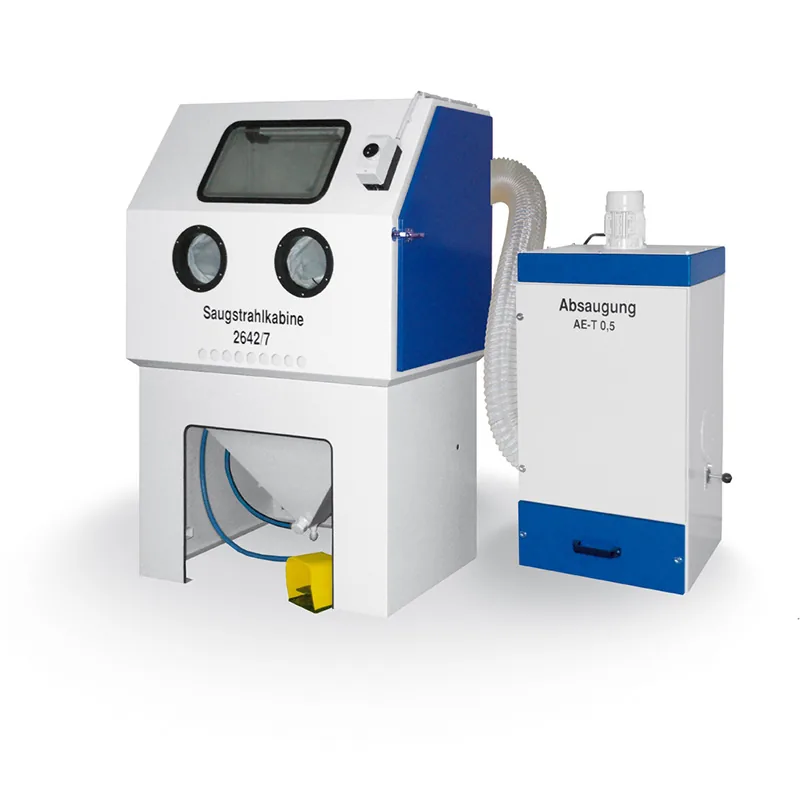

MB – Compact blast cabinet 2642/7
Dust-tight low-pressure blast cabinet with integrated abrasive recycling and a separately positioned filter extraction unit. Designed for daily workshop operation with constant abrasive recovery and clean air recirculation.
Equipment & Features
- 2 side loading doors
- 2 built-in gloves (padded inside, rubber-coated outside)
- Large viewing window with replaceable inner foil
- Dust-proof tube light, Duren glass, 24 W PL lamp
- Suction-type blast gun with hardened tungsten carbide nozzle
- Extraction: fan + filter chamber with bag filter
- Manual cleaning mechanism + dust drawer
- Filtered air returned to atmosphere
Technical Data
| Outer dimensions | W 1200 × D 895 × H 1720 mm |
|---|---|
| Work area | W 1065 × D 680 × H 940 mm |
| Weight | 125 kg |
| Compressed-air connection | Hose ½" |
| Paint finish | Grey/blue or custom |
| Air flow | 800 m³/h |
| Filter motor | 0.55 kW |
| Filter area | 5 m², cotton filter media |

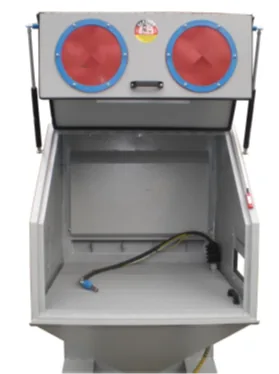

MB – Blast cabinets for wheels and body parts
Dust-proof low-pressure cabinet with a small footprint – designed for alloy wheels and small body parts. Available as suction or pressure variant. The high-performance blast head uses a tungsten carbide nozzle; the cartridge filter unit including extraction motor sits directly at the rear of the cabin. Almost any mineral, organic or metallic blasting medium can be processed.
Equipment & Features
- Dust-proof – choice of suction or pressure design
- Large stable front door, gas-strut assisted
- Door safety switch
- 2 access openings with double rubber seal
- High-performance blast head with tungsten carbide nozzle
- Built-in media hopper with dosing valve
- Bright work-area lighting (protected by safety pane)
- Cartridge filter unit with extraction motor at the rear
Available models – internal work-area dimensions
| Model | Width | Depth | Height | Filter |
|---|---|---|---|---|
| ECO/DSK 1000 | 1,000 mm | 900 mm | 900 mm | 0.55 kW |
| ECO/DSK 1250 | 1,250 mm | 900 mm | 900 mm | 0.55 kW |
| ECO/DSK 1500 | 1,500 mm | 1,150 mm | 900 mm | 1.1 kW |
| ECO/DSK 2000 | 2,000 mm | 1,150 mm | 900 mm | 1.1 kW |
Overall cabin height (all models): 2,200 mm. Extensive equipment options available on request.

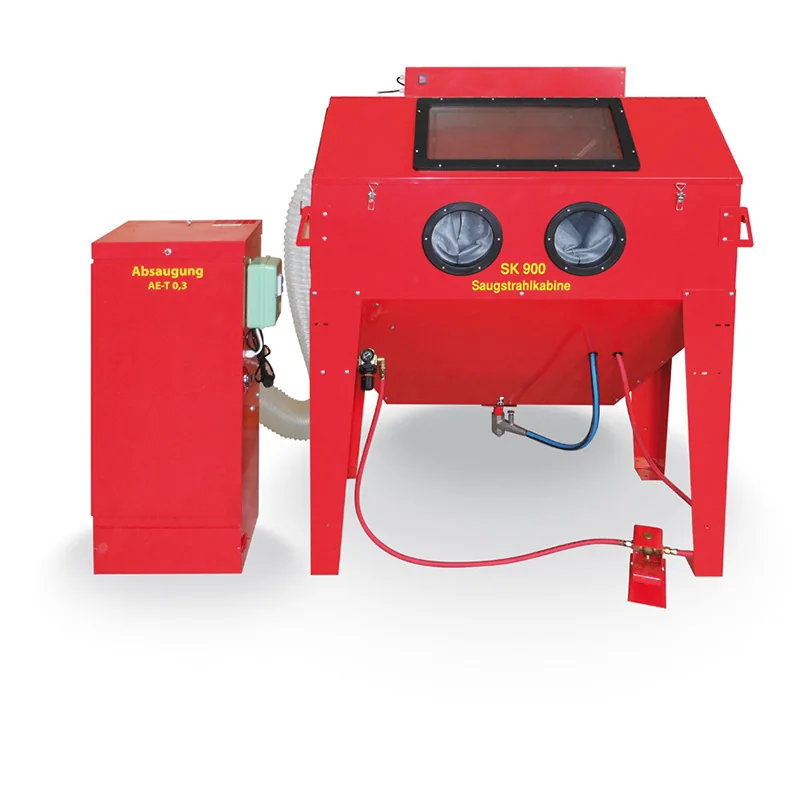

MB – Economy Strahlkabinen
Budgetfreundliche Einstiegs-Strahlkabine nach dem Injektorprinzip – konzipiert für kleinere Stückzahlen, Reparaturarbeiten und gelegentlichen Werkstatt-Einsatz. Bewährt bei Motorenteilen und Karosseriekleinteilen aus Restaurations- und Hobbybetrieben, wenn nur leichte Verschmutzungen zu entfernen sind.
Equipment & Features
- Injektorprinzip – für mineralische und organische Strahlmedien
- Inkl. Beleuchtung und Absaugung
- Komplett anschlussfertig geliefert
- Bestückung über seitliche Türe oder Frontklappe
- Für gelegentlichen Gebrauch ausgelegt
Technical Data
| Arbeitsraum min. | 630 × 550 × 450 mm (B × T × H) |
|---|---|
| Arbeitsraum max. | 1.200 × 860 × 815 mm (B × T × H) |

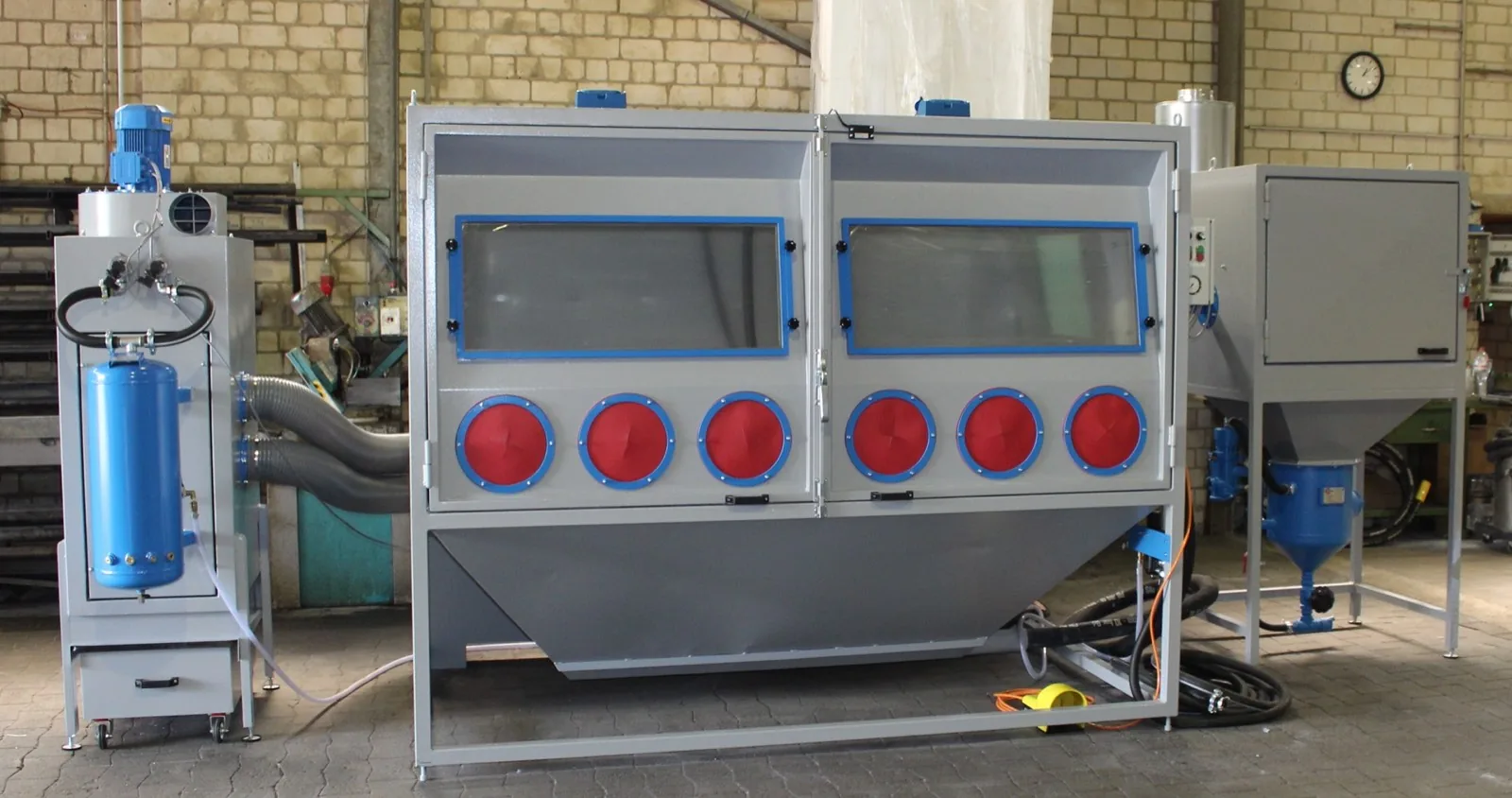

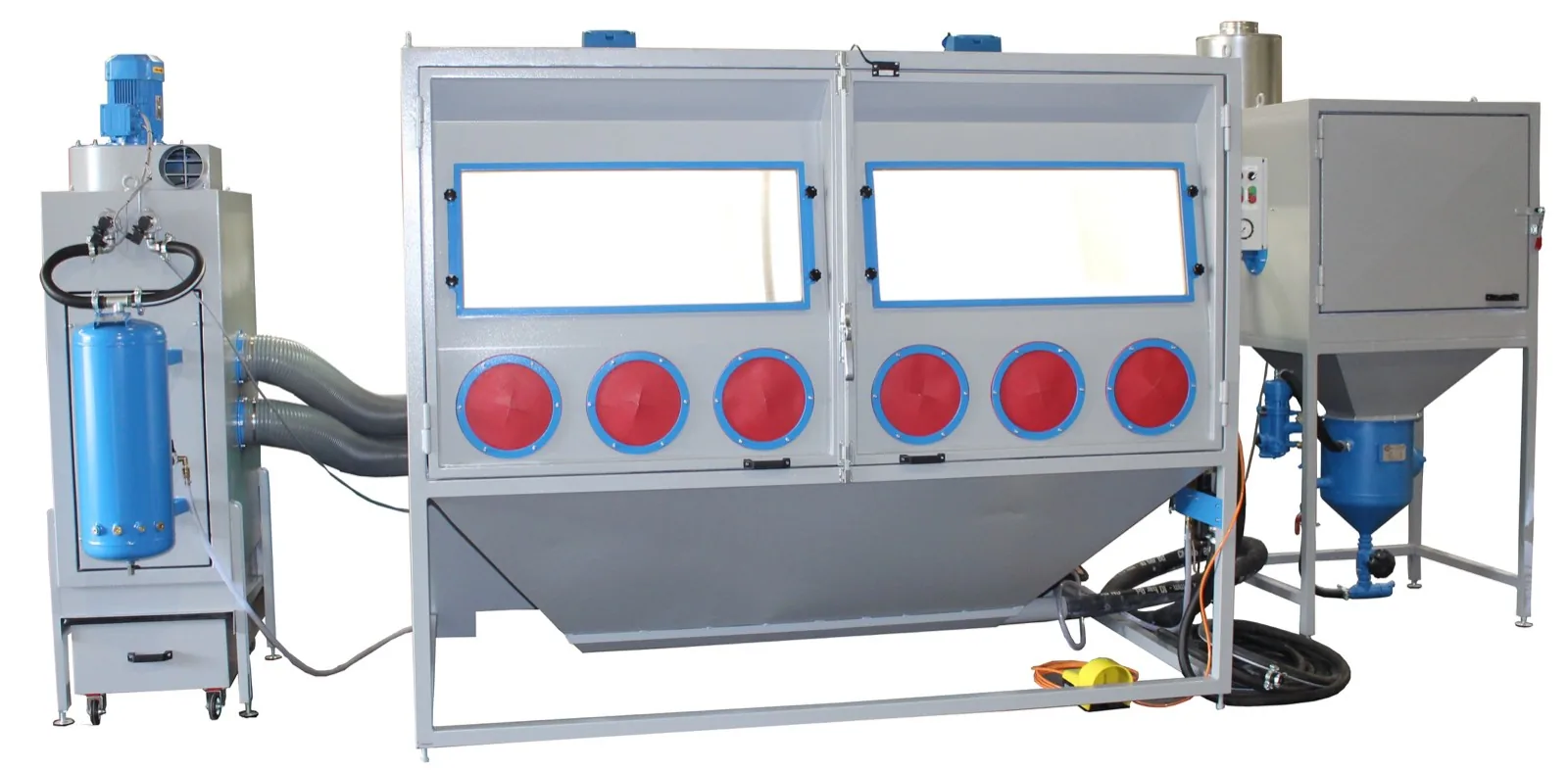

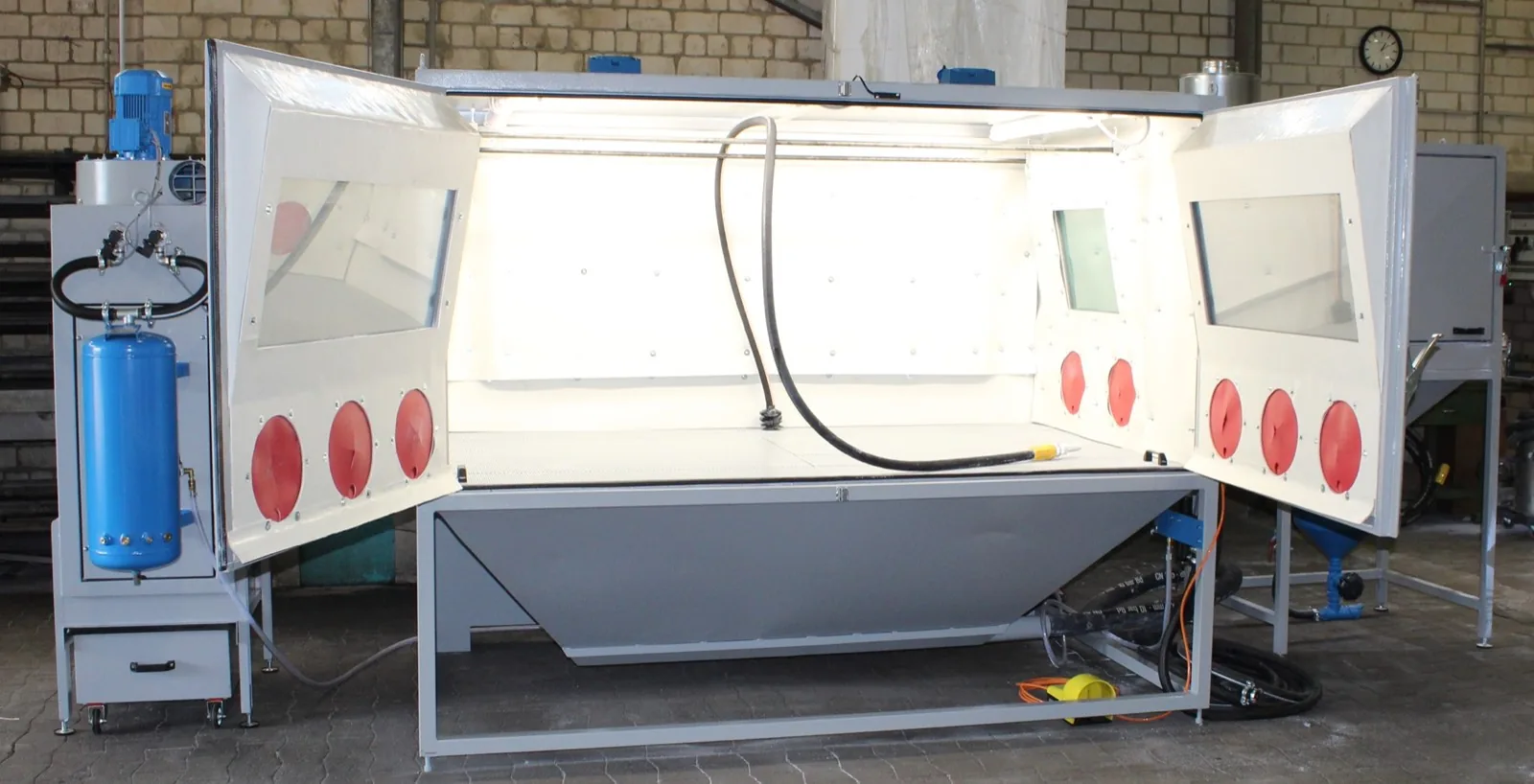

MB – Maxi blast cabinets, automotive type
Large-volume blast cabinet for bulky parts from body shops and industry. Complete equipment with media reclaim, extraction motor and cartridge filter unit; choice of suction or pressure process. As a lapping cabinet it replaces manual sanding in paint preparation – faster, more even, reproducible.
Equipment & Features
- Suction or pressure design
- Media reclaim including extraction motor + cartridge filter unit
- 2 oversized swing doors with large viewing windows
- 6 access openings with double rubber seal (optional 800 mm dust-proof gloves)
- 2 additional working positions in the side walls
- Bright long-field lights inside the cabin
- Wear-resistant lining of cabin walls
- Media dosing valve with fine adjustment (all common media)
Technical Data
| Model | MB-Automotive 2500 SD |
|---|---|
| Work area | W 2500 × D 1500 × H 1200 mm |
| Cabin dimensions | W 2900 × D 1800 × H 2500 mm (height incl. motor) |
| Swing doors | 2 × approx. W 1200 × H 1100 mm |
| Other sizes | Additional cabin sizes available |
MB – Mini blast container, automotive type
Walk-in blast system in container construction – ideal for man-sized workpieces. The sandwich walls (60 mm insulation panels, 3 mm wear-resistant rubber) keep dust in and noise out. The integrated blasting-media reclaim system handles practically all mineral, organic and metallic media.
Equipment & Features
- Steel-profile frame with crane lugs and forklift access
- Sandwich walls, 60 mm insulation, 3 mm wear-resistant rubber
- Bright LED lights flush-mounted in the ceiling
- Double door 2200 × 2000 mm with viewing window, rubberised inside
- Technical equipment dust-protected behind partition
- 2.2 kW filter unit – 3300 m³/h extraction, fully automatic cleaning
- Pneumatic flat conveyor floor, grating cover
- Media reclaim system with integrated suction unit + final filter
- 40 L pressure pot with pneumatic dosing valve
- Electric dead-man control with 3rd signal
- 6 m hose package 3/4" with dead-man switch and couplings
- Includes boron carbide nozzle (custom on request)
- Central electrical control unit + safety shut-off per regulations
Technical Data
| Work area | 3,200 × 2,300 × 2,500 mm (L × W × H) |
|---|---|
| Outer dimensions | 4,885 × 2,435 × 2,960 mm (L × W × H) |
| Extraction performance | 3,300 m³/h |
| Filter motor | 2.2 kW |
| Paint finish | Light grey (custom on request) |

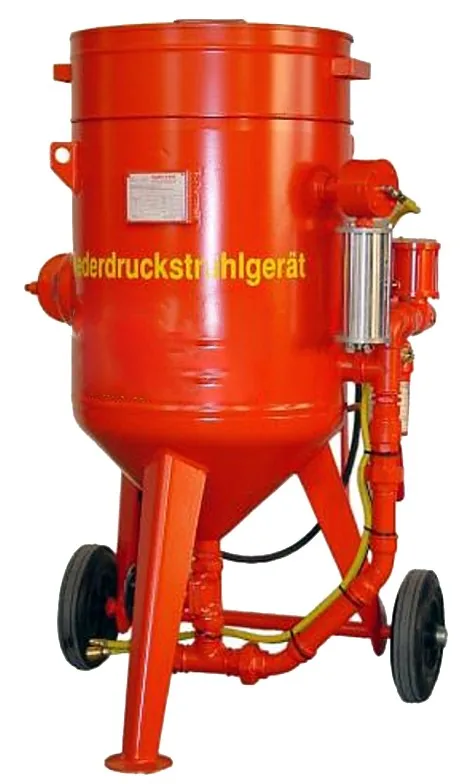

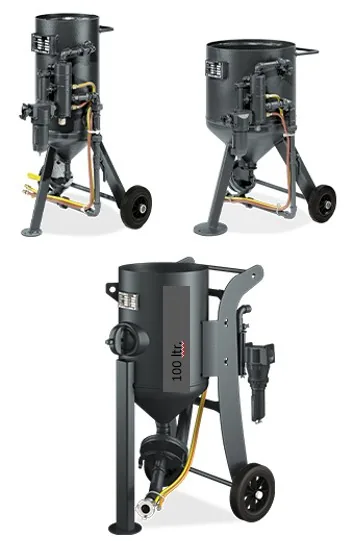

MB – Portable blast units
Mobile pressure-blasting pots for on-site work – four versions (suction, pressure, low-pressure, dust-free) in pot sizes from 24 to 200 litres. The low-pressure version is our answer for the gentle blasting process when very fine media must be run at low pressure. Built for construction sites, façade work and metalwork.
Equipment & Features
- Pot sizes 24 – 200 litres
- Pneumatic or electric remote control
- Pressure regulator and self-closing fill cone
- Connection fittings, blast hose with nozzle (standard)
- Suction: mineral and organic media
- Pressure / low-pressure / dust-free: also metallic media
- Low-pressure: gentle process with very fine media
- Accessories: media sieve, lid, hose extensions, water separator
Technical Data
| Pot volume | 24 – 200 litres |
|---|---|
| Versions | Suction / Pressure / Low-pressure / Dust-free |
| Control | Pneumatic or electric (remote) |
| Use | Mobile – flexible on-site use |
MB – Professional blast cabinets type NI and NP
The NI/NP series is our choice for demanding industrial applications in daily duty. Type NI uses the suction process, type NP uses the pressure-blast system – compatible with mineral, organic and metallic recycling media. Consistently designed for low maintenance: wear-resistant interior, well-thought-out ergonomics, minimal downtime.
Equipment & Features
- Type NI: suction | Type NP: pressure
- Media reclaim system (cyclone)
- Magnetic separator
- Powerful extraction unit with cartridge filter, automatic cleaning
- Bright, glare-free lighting
- Wear-resistant large gloves, fixed to the cabin
- 2 dust-proof side doors with safety lock
- Wear- and maintenance-resistant construction
Work-area dimensions per type
| Type | Work area, min. | Work area, max. |
|---|---|---|
| Type NI (Suction) | 1,105 × 800 × 800 mm | 1,370 × 940 × 830 mm |
| Type NP (Pressure) | 1,170 × 940 × 885 mm | 2,200 × 1,400 × 1,090 mm |
Dimensions in W × D × H mm.
Optional Accessories
- Rotating cage for small parts
- Loading platform / turntable
- Door air locks
- Gun holder
- HEPA filter / exhaust
- Automation solutions

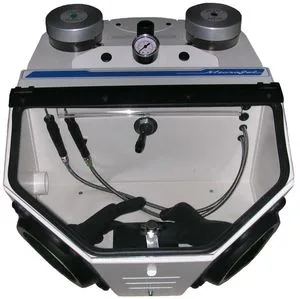

MB – Micro fine-blasting technology
Fine-blasting technology for millimetre-precise work: pressure-blast units in tabletop format, designed for mineral media up to 250 µm. The slim hand-piece (tungsten carbide nozzle 0.8 – 1.5 mm) lets you precisely work contours, edges, slots, undercuts and small bores. Ideal for dental laboratories, tool and mould making and fine restoration work.
Equipment & Features
- Pressure-blast principle – exclusively mineral media up to 250 µm
- Tungsten carbide nozzle 0.8 – 1.5 mm for spot-precise work
- MB-JK 1 Single: optional add-on with foot pedal, combinable with existing cabinets
- MB-JK 2: compact version with lighting, foot switch and external extraction
- MB-JK 2 also usable as a stand-alone tabletop blasting unit
- Option: 2 media containers + 2 nozzles for complex surface structures
Technical Data
| Blasting principle | Pressure |
|---|---|
| Max grain size | 250 µm (mineral media) |
| Nozzle size | 0.8 – 1.5 mm (tungsten carbide) |
| Types | MB-JK 1 Single / MB-JK 2 Compact |

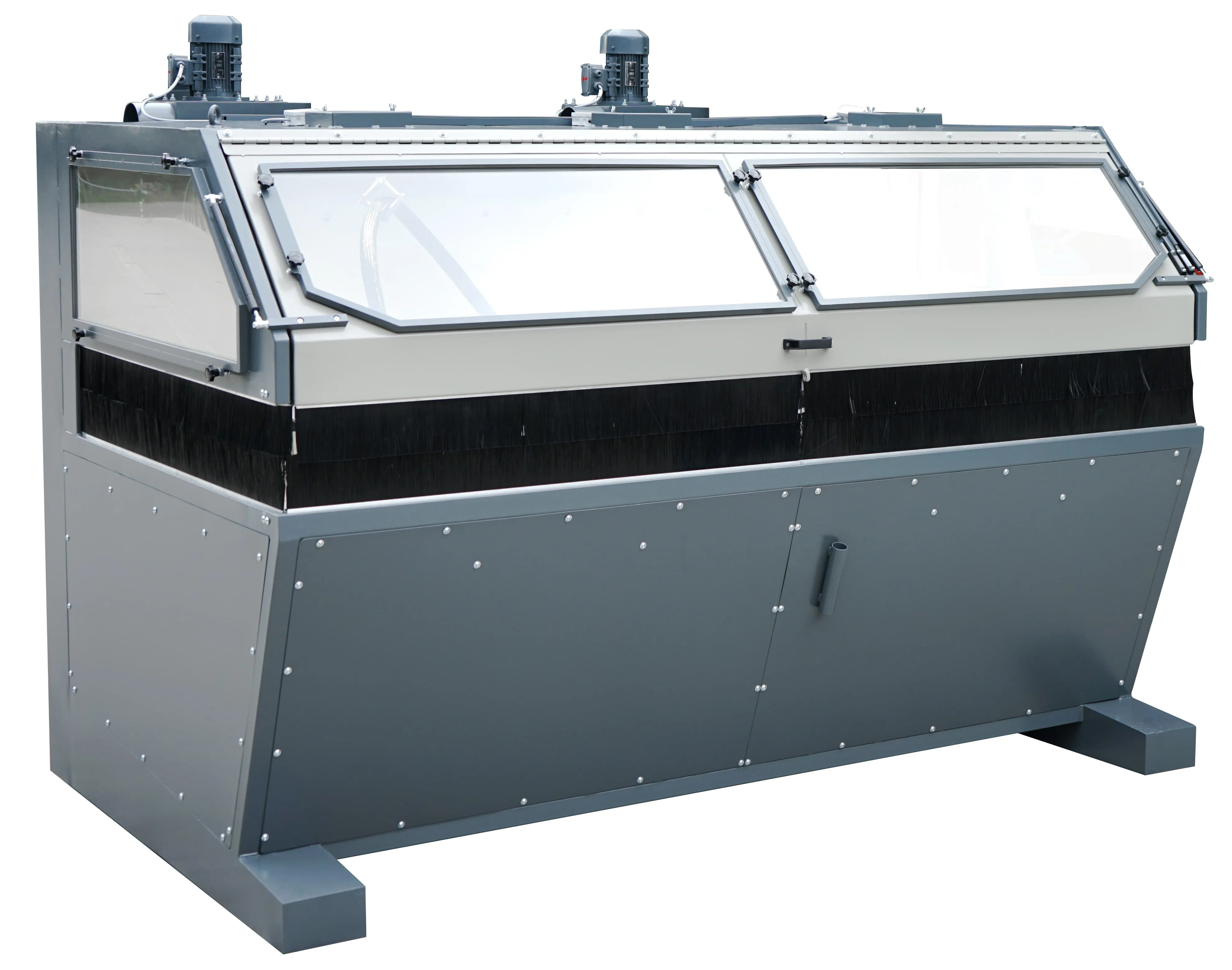

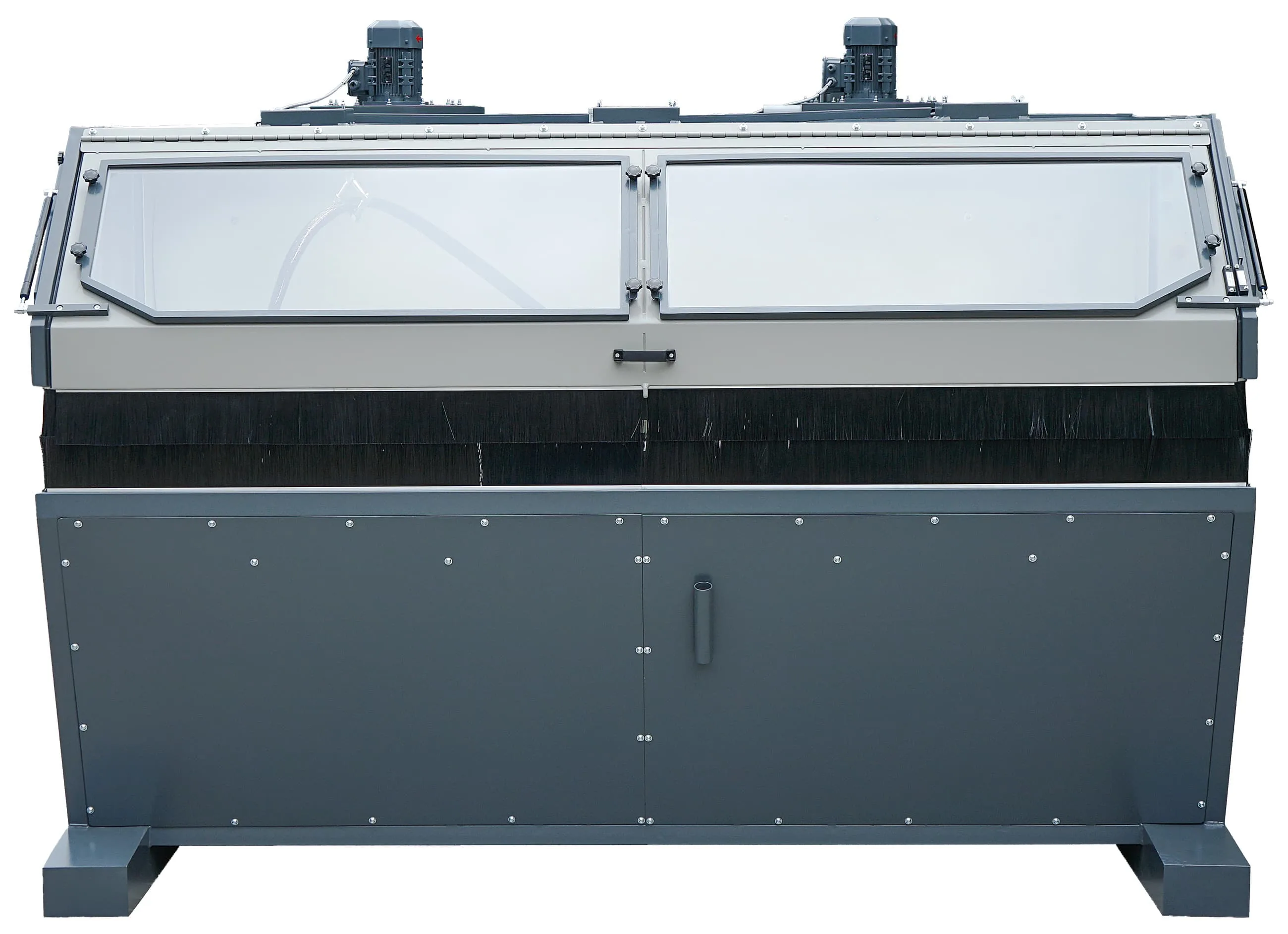

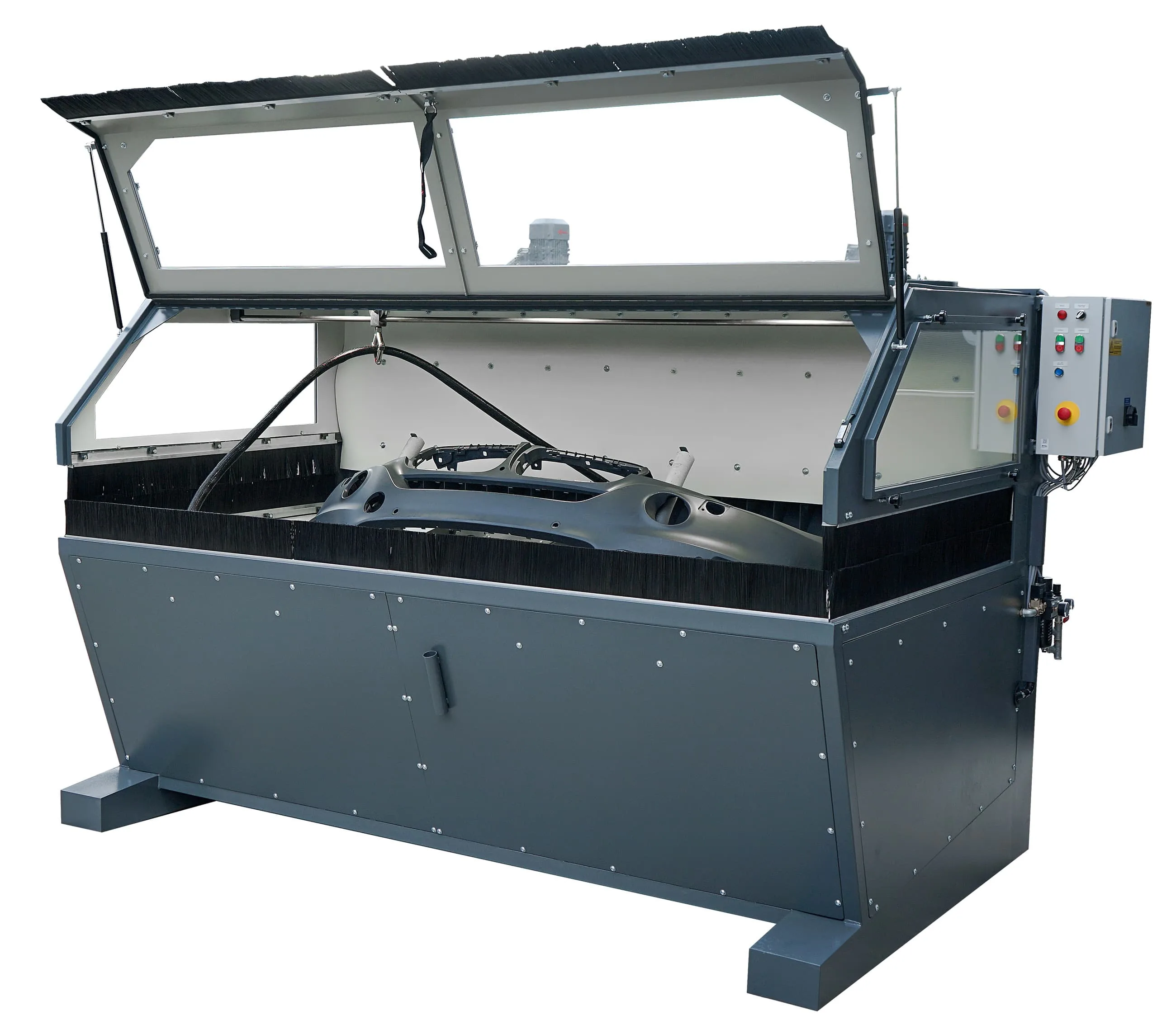

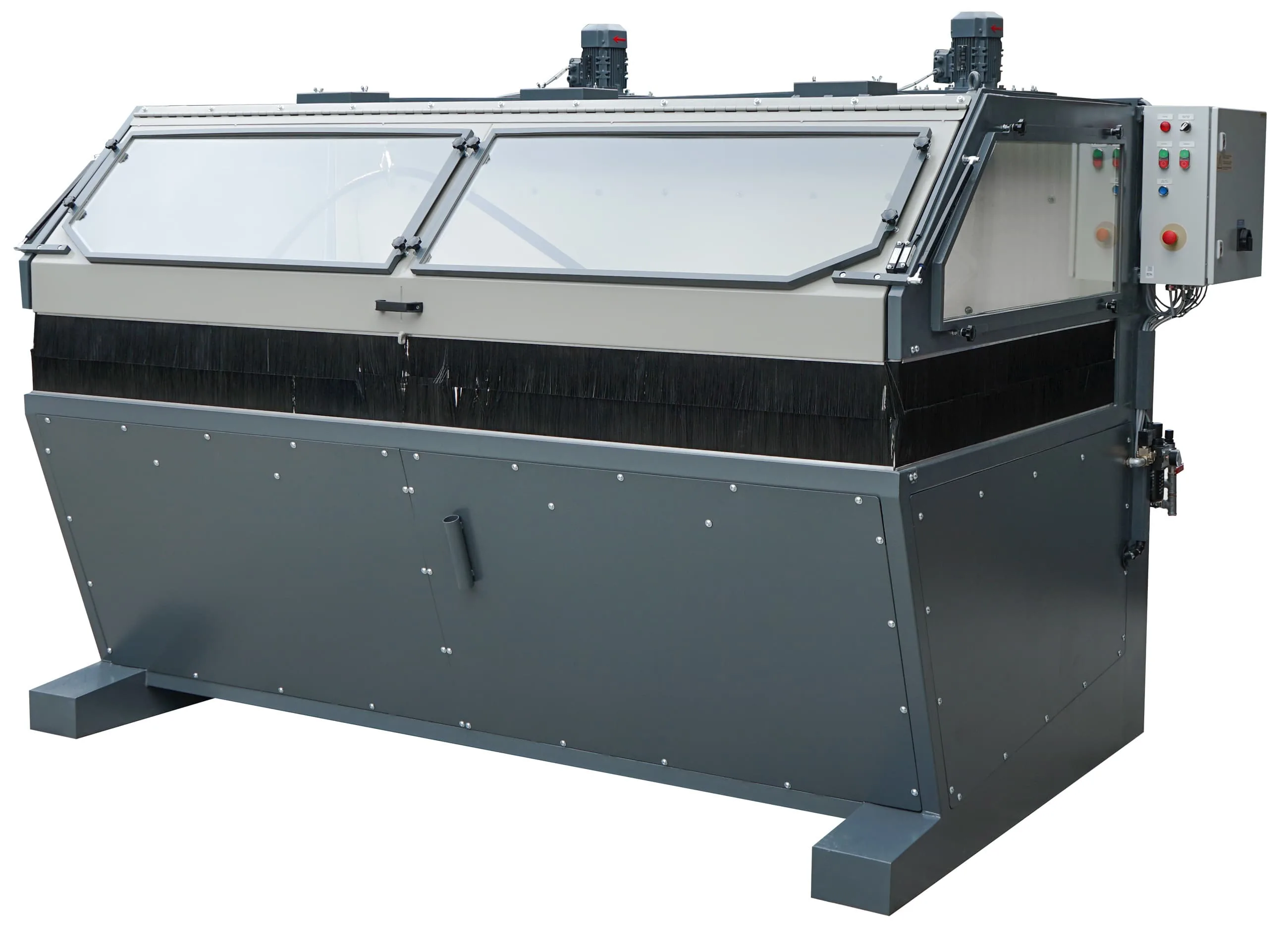

MB – Automotive Blaster
The specialised system for body and paint shops that matt plastic add-on parts every day. The vortex-rotation process applies an even base finish to bumpers, spoilers, radiator grilles, fenders and bonnets – without sandpaper, without manual work. Compared to manual processing, throughput drops by a factor of 6 to 8; running three parts a day pays the system back in roughly two years.
Equipment & Features
- Vortex-rotation process – constant, even matting
- Electrically swivelling part holder – quick to change
- Trolley for horizontal movement in all directions
- 2 blasting positions on the front sides for full all-round work
- Double glazing (real glass + acrylic) – robust and durable
- Bright LED lighting
- Blow-off gun for cleaning parts after blasting
- 2 filter cartridges (2 × 14 m² filter area), manual or fully automatic
- All viewing panes with quick-change two-pane system
- Brush seal also on front sides
Technical Data
| Article no. | WHE50100 |
|---|---|
| Electrical supply | 400 V / 16 A |
| Rated power | 2 × 1.1 kW |
| Protection class | IP 54 |
| Filter area | 2 × 14 m² |
| Compressed-air connection | 2 – 10 bar / approx. 900 – 1,000 l/min |
| Process | Vortex rotation |
| Work area | approx. 2,800 × 1,500 × 1,200 mm (W × D × H) |
| Dimensions (W × D) | approx. 3,000 × 2,350 mm |
| Height closed/open | approx. 2,200 / 2,550 mm |
| Weight | 1,400 kg |
Optional Accessories

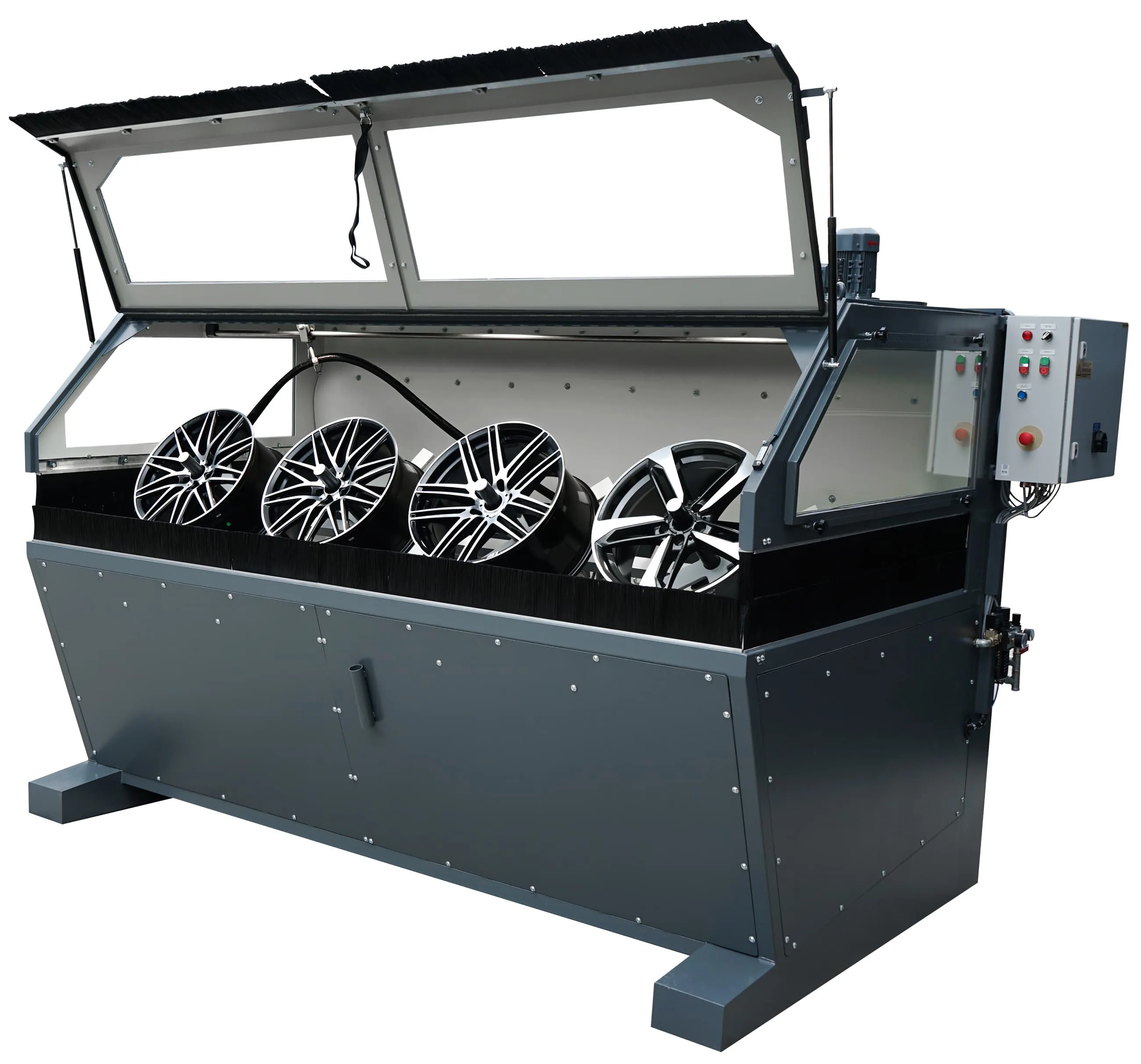

- 4-fold wheel holder (up to 24", ball-bearing, rotating and adjustable)

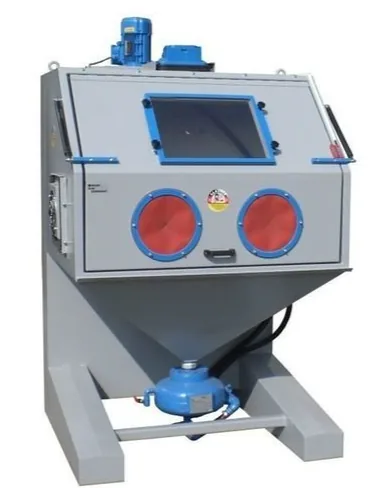

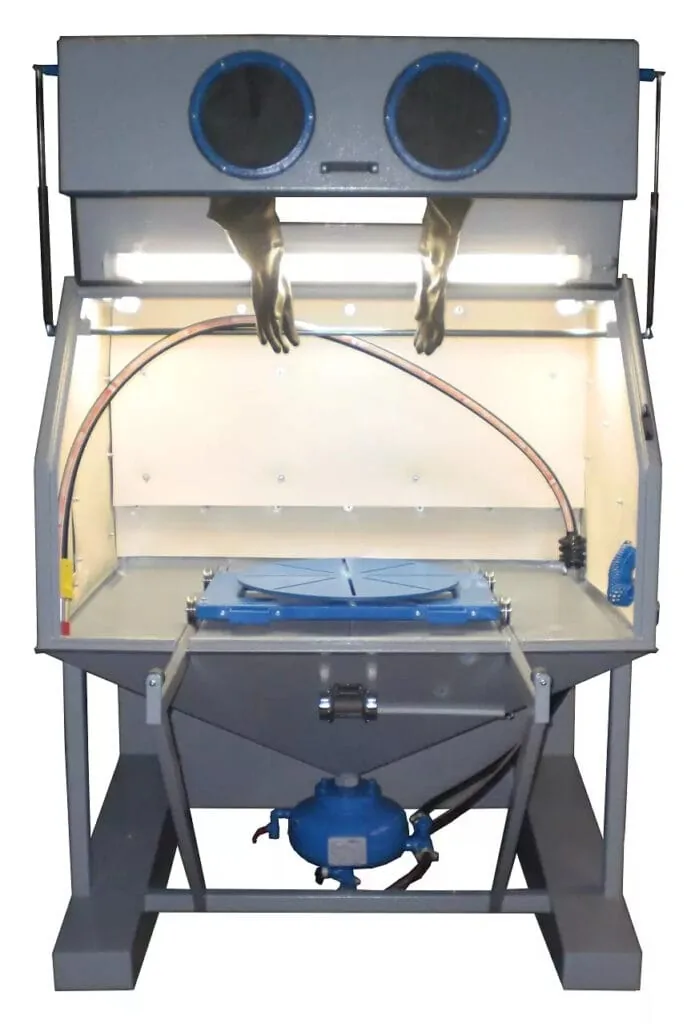

MB – Business blast cabinets type GL
The ECO/DSK series combines a compact footprint with solid business equipment: dust-proof low-pressure cabinet with a large gas-strut front door and four available work-area sizes. Choice of suction or pressure process. Popular for wheel refurbishment, body work and mixed workshop use.
Equipment & Features
- Dust-proof low-pressure cabinet, compact construction
- Suction or pressure design
- Large stable front door with gas struts
- Door safety switch
- 2 access openings with double rubber seal
- High-performance blast head with tungsten carbide nozzle
- Built-in media hopper with dosing valve
- Bright lighting (protected by safety pane)
- Cartridge filter unit with extraction motor at the rear
- For practically all mineral, organic and metallic media
Available models (ECO/DSK) – internal work-area dimensions
| Model | Width | Depth | Height | Filter motor |
|---|---|---|---|---|
| ECO/DSK 1000 | 1,000 mm | 900 mm | 900 mm | 0.55 kW |
| ECO/DSK 1250 | 1,250 mm | 900 mm | 900 mm | 0.55 kW |
| ECO/DSK 1500 | 1,500 mm | 1,150 mm | 900 mm | 1.1 kW |
| ECO/DSK 2000 | 2,000 mm | 1,150 mm | 900 mm | 1.1 kW |
Overall cabin height (all models): 2,200 mm. Extensive equipment options available on request.
Optional Accessories
- Media reclaim systems
- Turntable with or without loading platform
- Gun holder
- Workpiece blow-off gun
- Wear-resistant lining

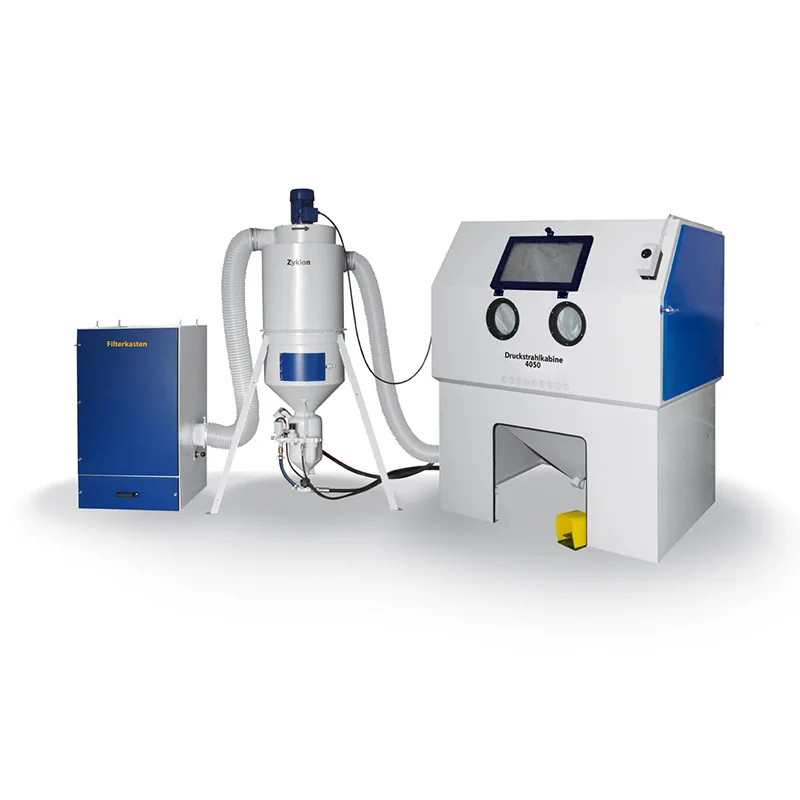

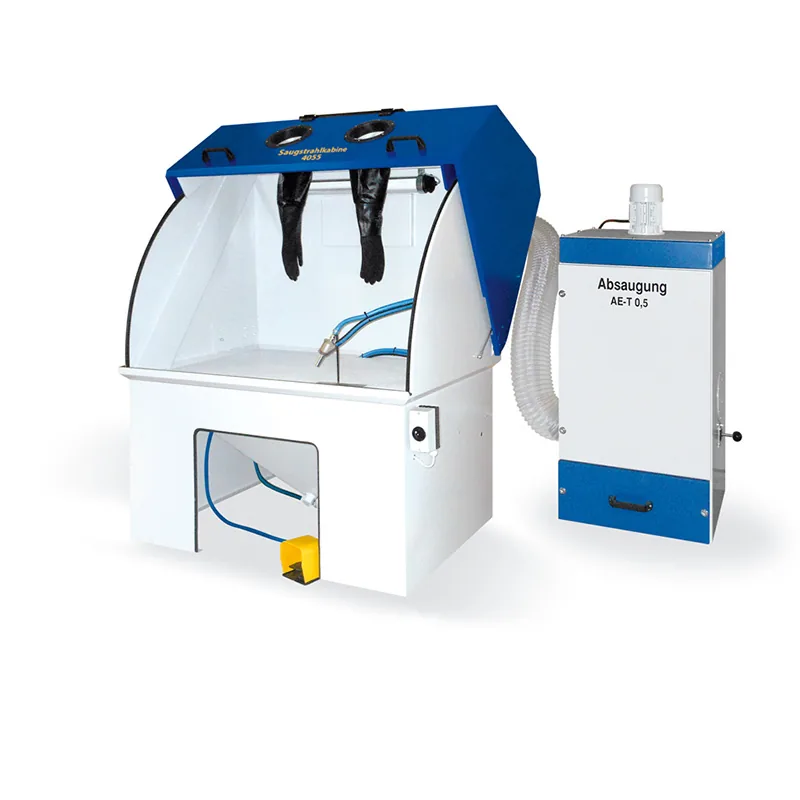

MB – Business blast cabinets type RR
The type RR is the bigger sister of the GL series – for shops with regular blast load and larger workpieces. Choose between suction and pressure design depending on the application; in the pressure version the cabin also handles metallic recycling media. Loading via side doors or front flap, complete with powerful extraction.
Equipment & Features
- Suction or pressure design
- Loading via side doors or front flap
- Bright cabin lighting
- Powerful extraction and filter unit
- Delivered ready to connect
- Suitable for mineral and organic media
- Pressure version: also for metallic recycling media
- Designed for regular industrial duty
Technical Data
| Work area, min. | 680 × 490 × 530 mm (W × D × H) |
|---|---|
| Work area, max. | 1,515 × 1,340 × 1,185 mm (W × D × H) |
Optional Accessories
- Media reclaim systems
- Turntable with loading platform
- Turntable without loading platform
- Gun holder
- Workpiece blow-off gun
- Wear-resistant lining
Advice & Quotation
We help you find the right blast machine for your requirements.
Contact us – no obligation, always personal.
